Differences Between Directional and Omnidirectional Antennas

Understanding the distinctions between directional antenna and omni directional antenna is crucial for optimizing network performance and signal coverage in various applications. Antennas play a vital role in wireless communication systems, including das distributed antenna systems, cellular networks, and broadcasting. This article will explore the signal coverage patterns, performance, installation requirements, cost implications, and best use cases for each type of antenna to guide you in making informed decisions based on your specific needs.

Signal Coverage Patterns Compared

Antennas are designed to transmit and receive signals, but the way they spread these signals can vary significantly between directional antennas and omnidirectional antennas. Signal coverage patterns are a primary consideration when selecting an antenna for your application.

Directional antennas, such as the yagi antenna and log-periodic antenna, concentrate signal power in a specific direction, making them ideal for point-to-point communication like connecting two buildings or devices over a distance. In contrast, omni directional antennas are often used in environments where broad coverage within a circular area is required, like in indoor distributed antenna systems (DAS).

Performance in Various Environments

The performance of antennas can be influenced by their environment, which can impact signal strength and quality. When considering rf connectors and coaxial cable assembly options, understanding the environment is essential.

Directional antennas excel in open environments with clear line-of-sight between transmitter and receiver. They can efficiently target specific areas without interference from surrounding signals. This makes them a suitable choice for rural or suburban scenarios where distance and direct signal paths are crucial.

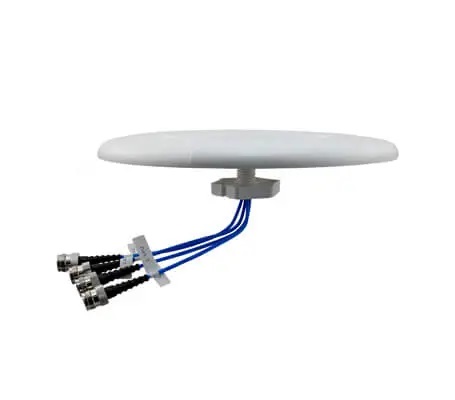

Conversely, omni directional antennas perform well in urban environments where signals need to spread evenly across a cluttered area. For instance, in an in-building DAS, omni directional antennas ensure that every corner of a building receives adequate signal strength.

Installation Requirements

Each type of antenna has distinct installation requirements, which influence their complexity and feasibility in different projects. Installation consideration includes the type of rf cable connector and coax assemblies needed for the setup.

Directional antennas typically require meticulous alignment to ensure that the signal beam points directly at the intended target. Their installation might involve more complex mounting equipment and, in many cases, the expertise of professionals to ensure optimal alignment and performance.

On the other hand, omni directional antennas are generally easier to install given their 360-degree coverage. They don't require alignment towards a particular direction, which can simplify the mounting process significantly. However, for specific applications like a leaky feeder cable setup, proper positioning is still critical to ensure effective coverage.

Best Scenarios for Each Type

Recognizing the best scenarios for each type of antenna can ensure that your communication systems are both efficient and cost-effective, maximizing the use of accompanying components like rf diplexer, rf adapters, and power splitters.

Directional antennas are well-suited for point-to-point communication where a strong, focused signal is necessary. Applications may include outdoor broadcasting, linking distant locations, or targeted communication setups in open areas.

Conversely, omni directional antennas are ideal for environments that demand broad, all-encompassing coverage. They provide excellent utility in multi-tenant buildings, indoor distributed antenna systems, and spaces needing even signal distribution without complex alignment requirements.

By selecting the appropriate antenna type and supporting equipment, such as flexible coaxial cable, n female connector, and dummy load, you can design tailored solutions that meet specific communication needs and environments.

Conclusion

Choosing the right antenna solution—whether it's a directional antenna for focused transmissions or an omni directional antenna for comprehensive coverage—requires a deep understanding of your environment, signal requirements, and budget. By considering key factors such as signal coverage patterns, performance, and installation requirements, you can make informed decisions that optimize the efficiency and effectiveness of your communication systems. Don't forget to factor in the cost of additional components like rf couplers, low loss coaxial cable, and coaxial jumper cables to ensure a seamless integration into your existing network setup. Armed with this knowledge, you'll be better equipped to navigate the technical and financial landscape of antenna selection and deployment.
