Key Advantages of a Dual Band Combiner in Modern RF Systems

Modern RF systems often need to carry more than one frequency band through the same feeder cable, antenna or distribution network. Installing a separate RF path for every band may increase cable quantity, tower loading, installation time and overall system complexity.

A dual band combiner provides a practical way to combine two separate frequency ranges into one common RF path. It is widely used in cellular base stations, passive distributed antenna systems, rooftop sites and network upgrade projects where two bands must share existing infrastructure.

However, a dual band combiner is only suitable when the two frequency ranges can be separated effectively through filtering. Correct selection requires careful review of the frequency plan, insertion loss, isolation, PIM, power handling, MIMO configuration and installation environment.

What Is a Dual Band Combiner?

A dual band combiner is an RF device designed to merge two distinct frequency bands into a single output feeder—typically using band-pass filters and couplers.

A typical single-unit design has:

• One port for Band 1

• One port for Band 2

• One common RF port

Each band port connects to a dedicated filter path. The filter allows the required frequencies to pass while rejecting signals assigned to the other port. The two filtered signals then meet at the common connection.

Many passive designs are reciprocal. This means that the same device can also separate a combined signal entering the common port and direct each frequency range to its corresponding band port. Mini-Circuits provides a useful explanation of how a frequency diplexer works as a combiner.  A conventional diplexer therefore has two sub-band ports and one common port and can be used for either frequency combining or separation.

For example, two separate ranges such as 824–880 MHz and 890–960 MHz can be connected to one common RF output when the selected product provides the required passbands and isolation. SYMAIR classifies its 850/900 MHz model as a two-way diplexer with two inputs and one output.

How Does a Dual Band Combiner Work?

A dual band combiner uses two frequency-selective filter paths connected to a shared RF port.

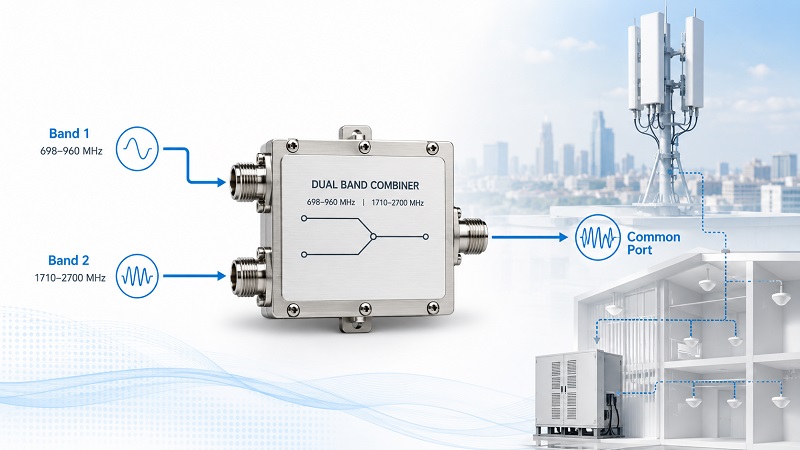

The basic signal flow is:

Band 1 Input → Filter Path 1 ─┐
Band 2 Input → Filter Path 2 ─┴→ Common Port → Shared Feeder or Antenna

The Band 1 filter passes the first required frequency range and rejects the second. The Band 2 filter performs the opposite function. At the common port, both supported frequency ranges can travel through the same downstream RF path.

Why Is Band-to-Band Isolation Important?

Isolation indicates how effectively the two band ports are separated from each other. Adequate isolation helps prevent RF energy from one connected radio from entering the other radio port.

The required isolation depends on:

• The separation between the two frequency ranges

• Transmitter power

• Receiver sensitivity

• Out-of-band rejection requirements

• The design of the connected radio equipment

Closely spaced bands are generally more challenging to separate than widely spaced bands and may require a more selective filter design.

Why Does Insertion Loss Matter?

Insertion loss is the signal power lost while passing through the combiner. It should be included in the complete RF link budget together with cable, jumper, connector, splitter, coupler and antenna losses.

The insertion loss may differ between the two filter paths. Engineers should therefore use the value specified for each individual passband rather than assuming that both paths have identical performance.

Is a Dual Band Combiner the Same as a Diplexer?

In many telecom and RF applications, the terms dual band combiner and diplexer describe the same basic three-port device.

The difference is mainly one of emphasis:

• Dual band combiner emphasizes combining two bands into a shared output.

• Diplexer emphasizes the frequency-selective device structure and its ability to combine or separate two bands.

A diplexer should not be confused with a hybrid combiner. A dual band combiner or diplexer separates signals according to frequency. A hybrid combiner uses a broadband hybrid structure and may be selected when the signals cannot be separated effectively through ordinary frequency-selective filtering.

For a wider comparison, readers can refer to SYMAIR's guide to multiband, same-band and hybrid combiners.

Advantages in Outdoor & Co-Site Deployments

• Space-saving feeder sharing: A dual band combiner enables two transmitters to share one antenna line. This reduces the number of feeders and antennas required at a tower or rooftop site.

• IP67 ruggedness: With IP67-rated enclosure, the combiner withstands rain, dust, and harsh outdoor conditions without degradation of performance.

• High power handling and low PIM: Designed for up to 200–250 W continuous power per port, and typical third-order passive intermodulation (PIM) of –160 dBc or better, the combiner ensures excellent linearity even under multi-carrier load.

Single vs Twin Dual Band Combiners

Dual band combiners are available in different port configurations depending on the number of independent RF paths required.

Single-Unit Dual Band Combiner

A single-unit model normally uses:

2 band inputs → 1 common output

This configuration is suitable for a single RF branch or SISO system.

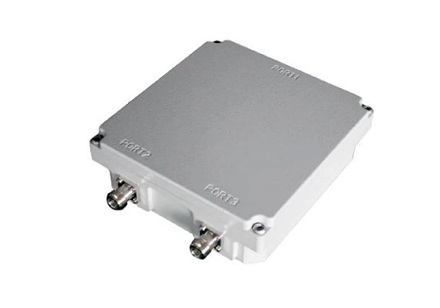

SYMAIR's 850/900 MHz model, for example, is a single-unit two-way diplexer with two inputs, one output and N female connectors.

Twin or Double-Unit Dual Band Combiner

A twin configuration normally uses:

4 band inputs → 2 common outputs

It contains two parallel dual-band filter assemblies in one enclosure. Each assembly combines the same two frequency ranges, but the two output paths remain electrically separate.

This configuration can support 2×2 MIMO systems, where both MIMO branches need access to the same two bands without being combined with each other.

SYMAIR’s 2100/2600 MHz double-unit model has four inputs, two outputs and separate paths for 1710–2170 MHz and 2300–2700 MHz.

Where Are Dual Band Combiners Used?

Passive Distributed Antenna Systems

In a passive DAS, two cellular frequency ranges may be combined before entering the feeder network. Splitters, directional couplers and tappers then distribute the combined signal to indoor antennas.

A dual band combiner may be installed near the signal sources or integrated into a larger DAS combiner or point-of-interface assembly. A complete DAS head-end may also contain same-band combiners, hybrid devices, attenuators and monitoring ports.

Cellular Base Stations and Rooftop Sites

Radios operating in different frequency ranges can share one feeder cable or compatible multiband antenna port. This may reduce the number of cables installed on the tower or rooftop structure.

Co-Site Deployments

At co-located sites, several radio systems may need to share limited installation space. A suitable diplexer can combine two non-overlapping frequency ranges while maintaining isolation between the radio ports.

4G and 5G Network Upgrades

A dual band combiner may add another LTE or sub-6 GHz 5G frequency range to existing passive infrastructure. Before reuse, engineers must confirm that the feeders, antennas, connectors and other passive components support both bands.

Public Safety and Private Wireless Networks

Custom dual-band configurations can support public safety, private LTE, industrial communication and other specialized networks where two frequency ranges need to share one RF path.

How to Select a Dual Band Combiner

1. Confirm the Exact Frequency Ranges

Provide the complete operating ranges for both band ports. General descriptions such as “850 MHz,” “LTE” or “5G” are not precise enough because actual uplink and downlink ranges may differ by market and application.

Each required frequency must fall within the specified passband.

2. Check the Separation Between the Bands

A conventional dual band combiner requires two frequency ranges that can be separated by filters.

When the ranges overlap, or when the guard interval is too narrow to achieve the required rejection, a standard diplexer may not be suitable. The project may instead require a same-band, hybrid or customized filter solution.

3. Select a Single or Twin Configuration

Use a single unit for one RF branch. For 2×2 MIMO, select a twin or double-unit model that provides two independent combining paths.

The two MIMO paths must remain correctly labelled and connected throughout the system.

4. Include Insertion Loss in the Link Budget

Review the maximum insertion loss for both filter paths and add it to the total passive system loss.

Do not use a typical value from another model. Filter order, band spacing, connector type and enclosure design can all affect insertion loss.

5. Review Band-to-Band Isolation

Isolation must be sufficient for the connected transmitter and receiver equipment. Higher source power or smaller band spacing may require stronger rejection between ports.

6. Check Return Loss and VSWR

Return loss and VSWR indicate how well the combiner ports are matched to the RF system. Better impedance matching means less power is reflected toward the source. In most cellular RF systems, the reference impedance is 50 ohms.

7. Evaluate PIM Requirements

Passive intermodulation can occur in components normally considered linear, including connectors, cables, antennas, filters and combiners. In multi-carrier cellular systems, unwanted PIM products can interfere with receive frequencies and reduce system performance.

When comparing PIM values, also check the stated test-tone power. A PIM figure without its test conditions is incomplete.

8. Confirm Average and Peak Power

Verify the permitted input power for each band port. The selected model must support the actual combined carrier power and expected operating conditions.

9. Confirm DC and AISG Bypass

Some cellular installations require DC power or AISG control signals to pass through a specified RF path for remote electrical tilt equipment or tower-mounted devices.

Check:

• Which ports support bypass

• The permitted voltage and current

• Whether all ports or only one selected path supports DC/AISG

10. Choose the Connector and Environmental Rating

Common connector options include:

• N female

• 4.3-10 female

• 7/16 DIN female

The selected interface should match the existing RF system, power requirements, PIM target and available installation space.

Outdoor installations should also consider:

• IP protection

• Operating temperature

• Corrosion resistance

• Mounting method

• Weather sealing

• Surge and grounding requirements




Example SYMAIR Dual Band Combiner Specifications

The table below shows examples from selected SYMAIR models. These are not universal specifications for every dual band combiner.

The 850/900 MHz product uses a single-unit structure, while the two 1710–2170/2300–2700 MHz examples use double-unit structures. Connector interfaces and PIM ratings also differ between models.

Specifications vary by model and frequency combination. Refer to the individual product datasheet for confirmed values.

When Is a Dual Band Combiner Not the Right Choice?

A conventional dual band combiner may not be appropriate when:

• The two signal ranges overlap

• Both sources operate within the same band

• The bands are too close to achieve the required isolation

• More than two frequency paths must be combined

• The system requires broadband source isolation rather than frequency-selective filtering

• The product cannot support the required MIMO configuration

• The expected PIM or power level exceeds the device rating

In these cases, the system may require a same-band combiner, hybrid combiner, triplexer, quadplexer or customized POI solution.

SYMAIR Dual Band Combiner Solutions

SYMAIR supplies single-unit, twin and double-unit dual band combiners for passive DAS, cellular base stations, rooftop installations and outdoor site upgrades.

Available options include different:

• Frequency combinations

• Input and output quantities

• SISO and MIMO paths

• Insertion-loss and isolation requirements

• PIM levels

• Power ratings

• DC and AISG bypass arrangements

• N, 4.3-10 and 7/16 DIN connector interfaces

• Indoor and IP67 outdoor enclosures

To support model selection, provide SYMAIR with the exact frequency ranges, input power per port, number of RF paths, PIM target, connector type, DC/AISG requirements and installation environment.

Frequently Asked Questions About Dual Band Combiners

What is a dual band combiner?

A dual band combiner is a frequency-selective RF device that combines two separate frequency ranges into one common feeder, antenna or distribution path.

Is a dual band combiner the same as a diplexer?

In many telecom applications, yes. Both terms can describe a three-port device with two frequency-band ports and one common port. “Combiner” emphasizes the application, while “diplexer” describes the device structure and its combining or separating function.

Can a dual band combiner handle signals in the same band?

A conventional model is intended for separate frequency ranges. Same-band or overlapping sources may require a same-band or hybrid combiner.

Can a dual band combiner support MIMO?

Yes. A twin or double-unit combiner provides two separate dual-band paths for a 2×2 MIMO system.

Where is a dual band combiner installed?

It may be installed near the radios, at a DAS head-end, on a rooftop or tower, or anywhere two bands need to share a common RF path.

What specifications should be checked?

Important specifications include frequency range, insertion loss, isolation, return loss or VSWR, PIM, power handling, port configuration, DC/AISG bypass, connector type and environmental protection.

Conclusion

A dual band combiner allows two separate frequency ranges to share one feeder, antenna or passive distribution path through frequency-selective filtering. It can reduce cable quantity and infrastructure complexity while maintaining isolation between the connected band ports.

However, reliable performance depends on more than simply matching two general band names. Engineers should confirm the exact passbands, frequency separation, insertion loss, isolation, PIM, power, MIMO configuration, bypass requirements and installation environment before selecting a model.

For projects involving overlapping sources, same-band carriers or more than two frequency ranges, another combiner architecture may be more appropriate.
