Flexible Coaxial Cables: Benefits and Uses

In modern communication systems, flexible coaxial cables play a critical role due to their versatility and efficiency. These cables are essential in providing reliable transmission in various applications, including broadcasting, telecommunications, and data networking. By offering flexibility without compromising signal integrity, they serve as the backbone of countless technologies, from indoor distributed antenna systems to elaborate RF cable assemblies. This article explores the core benefits, types, constraints, applications, and comparisons with rigid options, highlighting how flexible coaxial cables can meet diverse needs in both commercial and residential settings.

What Makes Coax Flexible?

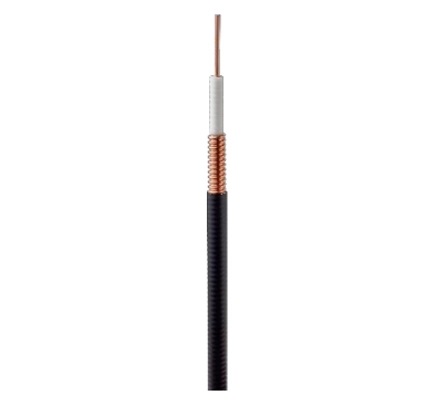

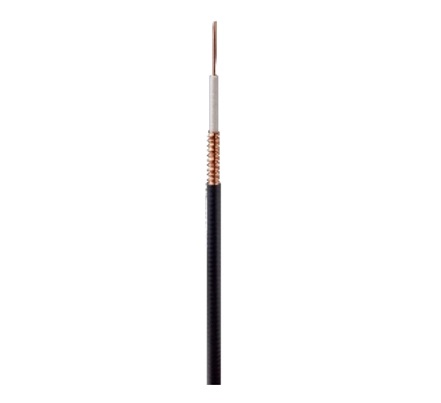

The flexible coaxial cable is distinguished by their construction, which allows it to bend and maneuver easily without affecting electrical performance. The flexibility primarily comes from the materials used in their design and their unique structural configuration. The core of these cables usually consists of stranded conductors that offer greater flexibility compared to solid core variants. They are sheathed with pliable, strong insulation materials that maintain signal integrity even when bent.

Building on this, manufacturers often encase the cable in an outer resilient jacket that provides additional protection against environmental factors. This smart construction makes flexible coax an ideal choice for situations where cable movement is frequent or necessary, such as in RF directional couplers, distributed antenna systems, or omni-directional antennas.

Bending Radius Limits

The bending radius of a coaxial cable is a crucial factor that affects its performance and longevity. The bending radius refers to the smallest radius the cable can be bent without sustaining damage or loss in performance. The bending radius limits for these cables are determined by their makeup, including the material and diameter of both the inner conductor and outer sheath.

For instance, RG type coaxial cables have specific bending restrictions, often quantified as a multiple of the cable's diameter. Flexible designs, such as LMR cables, offer enhanced bending capabilities, enabling them to be adapted to complex installations without risk. This feature is notably beneficial in setups involving custom RF cables, coaxial cable assemblies, or in situations requiring unique routing paths through tight spaces.

Applications

The use of flexible coax spans across an array of applications due to its adaptability and efficiency. These cables are widely used in communication sectors, including television and radio broadcasting, ensuring clear signals and robust connections. In the world of cellular networks, they facilitate the installation of DAS antenna systems, optimizing signal strength and coverage in challenging environments.

In addition to these, these cables are common in the assembly of RF cable connectors, ensuring secure and efficient signal transmission. Industries that require robust yet flexible solutions, such as aerospace, automotive, and defense, also benefit from these cables, particularly when used in rf directional coupler systems or for deploying antennas like the yagi antenna.

Comparison to Rigid

When comparing flexible coaxial cables to their rigid counterparts, several key differences stand out. While rigid cables provide exceptional signal stability and minimal loss, they fall short in environments requiring frequent movement or adaptation. The inherent rigidity makes them unsuitable for applications where bending or maneuverability is necessary.

In contrast, flexible cables provide a balanced compromise, offering sufficiently low signal loss while granting the flexibility needed for dynamic setups. They are invaluable in environments with space constraints or where equipment is subject to regular repositioning or upgrading. Thus, flexible coaxial cables continue to be a favored choice for varied applications including coax assemblies and solutions requiring rf adapters or n-type female connectors.

Conclusion

As advancements in technology and communications continue to highlight the need for adaptable and durable cabling solutions, flexible coaxial cables emerge as a significant component in modern infrastructure. Whether enhancing the performance of a DAS network or ensuring optimal signal transference in connectors and adapters, these cables offer unrivaled adaptability and efficiency. By understanding the benefits and applications described, businesses and engineers can better leverage the capabilities of flexible coaxial cables, ensuring robust, efficient, and future-proof communication systems.
