What Is a Diplexer and Its Role in RF Systems?

Diplexers are critical components in RF systems, serving a key function in the management and separation of different frequency bands. They allow two signals to share a common path or antenna while operating at distinct frequencies, thus enhancing the efficiency and functionality of RF communication systems. With the growing demands in wireless communication, the versatility and utility of diplexers have become indispensable in applications ranging from directional antenna systems to sophisticated broadcast networks. This article explores the complex workings of diplexers, their roles, and their integration within various RF applications, delivering insights and detailed explanations to help readers navigate the intricacies of RF systems.

Definition and Functionality

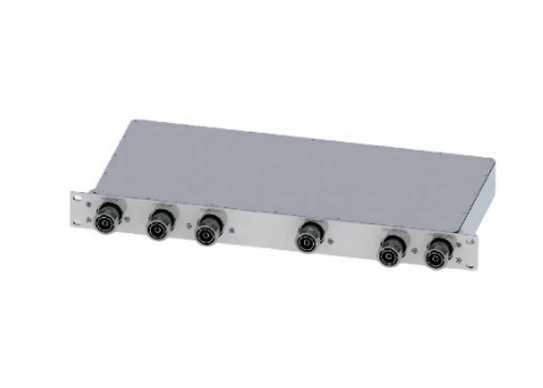

A diplexer is a passive RF component that operates as a frequency-selective filter, enabling simultaneous transmission and reception of different frequency bands over a single RF path or antenna. This functionality is essential for optimizing space and reducing costs in communication systems, such as DAS distributed antenna system installations or mobile network base stations.

Through precision engineering, diplexers enhance RF systems by ensuring seamless transitions between frequency bands and minimizing interference. The careful design and manufacturing of rf coaxial connectors and RF cable assemblies used alongside diplexers are vital to establishing a robust RF communication network.

Key Components

Diplexers are engineered with several components that play pivotal roles in their functionality. These include resonators, rf coax cable connectors, and filters. Resonators determine the frequency response, while connectors like the n connector and coax connector ensure reliable signal transmission. The filters separate signals into distinct frequency bands, maintaining the integrity of communication systems from the omni directional antenna to the 3 way power splitter solutions.

The integration of these components is essential for achieving the desired outcome in RF systems, ensuring efficiency in applications from in-building DAS to complex radio networks.

Applications in Antennas

Diplexers find extensive use in antenna systems, particularly in configurations involving sector antennas and log-periodic antennas. These applications require precise frequency management to optimize signal strength and distribution. By employing diplexers, RF engineers can achieve high performance in communication systems such as leaky feeder communications utilized in challenging environments like tunnels and underground installations.

The versatility of diplexers supports innovative configurations and optimal performance across a diverse range of RF applications, paving the way for advancements in wireless communication technologies.

Design Considerations

When designing custom RF cables and diplexers for RF systems, several factors must be considered to ensure optimal functionality. These include insertion loss, isolation between frequency bands, and power handling capabilities. The selection of high-quality materials for coax assemblies and connectors ensures low-loss signal transmission, which is crucial for maintaining efficiency in the RF system.

Addressing these design considerations is vital for creating reliable and effective RF systems, from power splitters to complex dual-band networks.

Common Issues and Fixes

Despite their widespread use, diplexers can encounter several issues that may impact their performance. Common problems include impedance mismatches in rf coaxial connector setups and interference between frequency bands. Solutions range from optimizing connector setups with advanced RF adapters to employing strategically placed rf directional coupler components and hybrid coupler assemblies.

Through proactive solutions and understanding of RF system dynamics, engineers can mitigate these issues and ensure optimal performance of their diplexers and associated components.

In conclusion, diplexers are pivotal in enhancing RF systems' functionality and efficiency through their role in frequency management. Understanding the intricate components, design considerations, and potential issues associated with diplexers can significantly impact the performance and reliability of RF communication systems. With continued advancements in technology and materials, such as low-loss coaxial cable for seamless transmission, diplexers remain integral to the evolving RF landscape.
