Distributed antenna systems and cellular sites often need to carry signals from multiple frequency bands, operators or radio sources over shared RF infrastructure. Same-band combiners, multiband combiners and hybrid combiners all bring RF signals together, but they solve different combining problems and are not interchangeable.
Multiband combiners are generally used when the signals occupy separate frequency ranges. Same-band combiners manage sources operating within the same band, while hybrid combiners provide a broadband combining method when frequency-selective filtering alone is not suitable.
Understanding these differences helps DAS designers and system integrators select the correct device while controlling insertion loss, port isolation, passive intermodulation, power handling and overall system complexity.
Article Summary
Multiband combiners combine separate RF frequency bands onto one common feeder or antenna path.
Same-band combiners combine different carriers, channels or signal sources that operate within the same frequency band.
Hybrid combiners use a broadband hybrid structure and are useful when the inputs cannot be separated through frequency-selective filtering.
Diplexers, triplexers and quadplexers are common types of multiband combiner.
Frequency range, isolation, insertion loss, PIM, power, MIMO paths and DC/AISG requirements must be checked before selection.
What Are Multiband Combiners?
A multi band combiner is a frequency-selective RF device that combines signals from two or more separate frequency bands into one common transmission path, feeder cable or antenna connection.
Each band is connected to a dedicated filter path. The filter passes the required frequencies while rejecting signals assigned to the other input ports. The supported bands can therefore share a common output while remaining isolated from each other.
For example, a cellular site may need signals from 698–960 MHz and 1710–2690 MHz to share one feeder cable. A suitable multiband combiner directs both ranges to the common port without directly connecting the low-band radio to the high-band radio.
Many passive multiband designs are reciprocal. When a combined signal enters the common port, the device can separate the signal and route each frequency range to its corresponding band port. This is why the same product may also be described as a diplexer, triplexer or frequency multiplexer.
How Do Multiband Combiners Work?
A multiband combiner contains multiple frequency-selective filters connected to one common RF port. Each filter is designed around a specific passband and rejection requirement.
Low-Band RF Input → Low-Band Filter ─┐ Mid-Band RF Input → Mid-Band Filter ─┼→ Common RF Port → Shared Feeder or Antenna High-Band RF Input → High-Band Filter ┘
Signals inside the intended passband travel toward the common port with controlled insertion loss. Signals outside that passband are rejected, helping maintain isolation between the connected radios.
Why Is Port Isolation Important?
Port-to-port isolation limits unwanted RF energy entering another radio or band port. Inadequate isolation can contribute to interference, receiver desensitization or excessive power reaching equipment that was not designed to receive it.
The required isolation depends on the frequency spacing, transmitter power, receiver sensitivity and network architecture. Closely spaced bands usually require more selective filter designs than widely separated bands.
Types of Multiband Combiners
Multiband combiners are commonly named according to the number of frequency paths they combine.
Combiner Type
Frequency Paths
Typical Function
Example Application
Diplexer
2
Combines or separates two frequency ranges
Low-band and high-band signals sharing one feeder
Triplexer
3
Combines or separates three frequency ranges
Low-, mid- and high-band cellular deployment
Quadplexer
4
Combines or separates four frequency ranges
Multi-technology DAS or cellular site upgrades
Pentaplexer
5
Combines or separates five frequency ranges
High-density multiband infrastructure
Twin or Double Unit
Two parallel RF paths
Repeats the same frequency-combining arrangement on two branches
2×2 MIMO systems
Why Are Twin Multiband Combiners Used?
A twin or double-unit combiner contains two parallel RF combining paths in one enclosure. It does not combine the two MIMO branches with each other. Instead, it applies the same band-combining arrangement to both branches while keeping the signal paths separate.
This configuration is commonly selected for 2×2 MIMO cellular sites, where each antenna branch must carry the required frequency bands without mixing the two MIMO paths.
What Is a Same-Band Combiner?
A same band combiner integrates carriers, channels or radio sources operating within the same general frequency band. Because the inputs overlap or sit close together in frequency, they cannot normally be separated by a conventional broadband diplexer.
Depending on the channel spacing, power level and isolation requirement, a same-band solution may use narrowband cavity filters, hybrid stages, attenuators or a customized combining matrix.
Same-band combiners are used when two base stations, radio systems or operators need to share a DAS or antenna path within the same spectrum allocation. Their design is generally more application-specific than that of a standard multiband combiner.
What Is a Hybrid Combiner?
A hybrid combiner is a broadband RF device based on a 90-degree or 180-degree hybrid structure. It can combine two signal sources while providing isolation between the input ports when the isolated port is correctly terminated.
Unlike a multiband combiner, a hybrid combiner does not primarily separate inputs according to different passbands. It is therefore useful when the signal sources operate within the same band, occupy adjacent ranges or require a broadband combining method.
Hybrid combining introduces the power division associated with the hybrid structure, as well as the device's additional insertion loss. The termination connected to the isolated port must also be rated for the expected imbalance and reflected power.
Multiband vs Same-Band vs Hybrid Combiners
The correct combiner depends mainly on the frequency relationship between the connected signals. The following table summarizes the differences.
Combiner Type
Signals Being Combined
Operating Principle
Key Consideration
Typical Application
Multiband Combiner
Different and sufficiently separated frequency bands
Frequency-selective filter paths
Passband loss, rejection and band isolation
Feeder sharing, antenna sharing and passive DAS
Same-Band Combiner
Carriers or sources within the same frequency band
Channel-selective filters, hybrid stages or custom architecture
Channel spacing, source isolation and system loss
Combining same-band operators or base stations
Hybrid Combiner
Same-band, adjacent-band or broadband signal sources
90-degree or 180-degree hybrid structure
Power division, isolated-port load and power handling
Broadband source combining and shared DAS systems
Quick Selection Rule
Use a multiband combiner when the inputs occupy separate frequency ranges that can be divided by filters.
Use a same-band combiner when the sources operate within the same band and channel-selective combining is possible.
Consider a hybrid combiner when broadband isolation is required and the signals cannot be separated through ordinary multiband filtering.

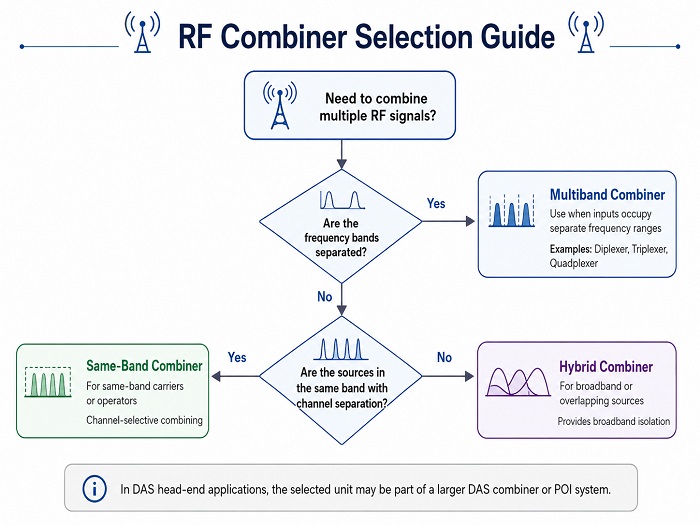

How to Select the Correct RF Combiner
Selecting the correct RF combiner starts with understanding the relationship between the input signals. Signals in separate frequency ranges are generally suitable for a multiband combiner, while sources operating within the same or overlapping bands may require a same-band or hybrid combining solution.
After selecting the appropriate combiner type, engineers should review the exact frequency plan, port configuration, insertion loss, isolation, PIM, power handling and installation requirements. The following steps provide a practical selection process for DAS, cellular and other RF systems.
1. Determine the Frequency Relationship Between the Inputs
First, identify whether the signals occupy separate, same or overlapping frequency ranges. This is the most important factor when choosing between multiband, same-band and hybrid combiners.
Signal Condition
Recommended Combiner
Typical Reason
Signals occupy separate frequency bands
Multiband Combiner
Frequency-selective filters can combine the bands while maintaining isolation between the input ports.
Signals operate in the same band with sufficient channel separation
Same-Band Combiner
Channel-selective filtering can separate and combine the individual carriers or signal sources.
Signals overlap or cannot be separated effectively by filters
Hybrid Combiner
A broadband hybrid structure provides source isolation without relying primarily on frequency-selective filtering.
2. Confirm the Exact Frequency Ranges
List the complete uplink and downlink frequency ranges for every connected signal source. General descriptions such as “700 MHz,” “LTE” or “5G” are not precise enough for product selection because regional band allocations and operating bandwidths may differ.
For multiband combiners, each required frequency range must fall completely within the specified passband. Closely spaced bands may also require sharper filter rejection and higher port-to-port isolation.
3. Define the Number of Inputs, Outputs and MIMO Paths
Confirm the number of BTS, RRU, BDA, operator or antenna ports required by the system. A simple SISO installation may need only one combining path, while a 2×2 MIMO deployment normally requires two parallel and electrically separate paths.
Twin or double-unit multiband combiners can support two MIMO branches within one enclosure. The two branches should remain correctly mapped throughout the DAS or feeder network to avoid crossed or unbalanced signal paths.
4. Include Insertion Loss in the RF Link Budget
Every RF combiner introduces some signal loss. The insertion loss of each path should be included together with losses from feeder cables, jumpers, connectors, splitters, couplers and antennas.
For a multiband combiner, insertion loss may vary between frequency paths. Always use the value specified for the relevant passband rather than assuming one common loss figure for the entire device.
5. Review Port-to-Port Isolation
Isolation indicates how effectively one input port is separated from another. Adequate isolation reduces the amount of RF energy that can enter another connected radio or signal-source port.
The required value depends on transmitter power, receiver sensitivity, channel spacing and system architecture. Same-band and closely spaced signal sources generally require more careful isolation analysis than widely separated frequency bands.
6. Check PIM and Power Handling
Passive intermodulation is an important consideration when multiple high-power carriers share the same passive RF path. Low-PIM components, clean connector interfaces and correct installation torque help reduce unwanted intermodulation products that may fall into cellular receive bands.
The combiner must also support the required average and peak power at every input port. For hybrid combiners, the isolated-port termination should be rated for the expected imbalance, reflected power and operating conditions.
7. Confirm DC and AISG Bypass Requirements
Some cellular sites require DC power or AISG control signals to pass through a selected RF path for remote electrical tilt equipment or other tower-mounted devices.
Confirm whether the combiner provides no bypass, a fixed bypass path or bypass on multiple ports. The selected configuration must match the site's antenna and control-system design.
8. Select the Correct Connector and Installation Format
Verify the required 50-ohm RF connector, such as N female, 4.3-10 or 7/16 DIN. Connector selection should match the existing feeder system, expected power level, PIM requirements and available installation space.
Also consider whether the combiner will be installed in an indoor rack, equipment room, wall-mounted enclosure, rooftop cabinet or outdoor tower environment. Temperature range, weather protection, corrosion resistance and mounting orientation may all affect product selection.
Common Applications of RF Combiners
RF combiners are used when multiple carriers, frequency bands or signal sources need to share feeder cables, antennas or a common DAS network. Multiband combiners are generally used for separate frequency ranges, same-band combiners for signals within the same band, and hybrid combiners for broadband or overlapping sources.
Passive Distributed Antenna Systems
In a passive DAS, signals are combined before entering the feeder network. Splitters, couplers and tappers then distribute the RF signal to indoor antennas. Different combiner types may be used depending on the frequency plan and number of operators.
Multi-Operator DAS and POI Systems
Multi-operator systems often integrate signals from several carriers into shared infrastructure. A POI may include multiband, same-band and hybrid combiners, together with filters, attenuators and monitoring ports.
Outdoor Cellular and Rooftop Sites
At macro and rooftop sites, combiners allow multiple radios to share feeder cables or antenna ports. This can reduce cable quantity, simplify installation and support additional frequency bands.
4G and 5G Network Upgrades
RF combiners can help add LTE or sub-6 GHz 5G signals to existing passive infrastructure. The final solution depends on whether the new and existing signals occupy separate, same or overlapping frequency ranges.
How Are Multiband Combiners Related to DAS Combiners?
A multiband combiner describes a specific frequency-selective device. A DAS combiner is a broader system term for a combiner or combining assembly used at the head-end of a distributed antenna system.
Depending on the system architecture, a DAS combiner may include multiband combiners, same-band combiners, hybrid combiners, filters, attenuators and a multi-input combiner matrix.
After the signals have been combined, splitters, couplers and tappers distribute the RF power across the downstream antenna network. Read how DAS combiners, hybrid combiners and RF splitters work for a complete explanation of the signal path.
SYMAIR RF Combiner Solutions
SYMAIR provides multiband, same-band and hybrid combiners for passive DAS, outdoor cellular sites, multi-operator networks and infrastructure upgrades. Available configurations include diplexers, triplexers, multi-path units, single and twin enclosures, and customized frequency combinations.
Product selection can be based on the required frequency bands, input and output quantities, SISO or MIMO architecture, insertion loss, isolation, PIM, power, DC/AISG bypass, connector type and installation environment.
Send SYMAIR your frequency plan, RF path quantity, input power and installation requirements for model selection or a customized combining solution.
Frequently Asked Questions About RF Combiners
What is the difference between multiband, same-band and hybrid combiners?
Multiband combiners handle separate frequency ranges. Same-band combiners combine signals within the same band, while hybrid combiners are used for broadband or overlapping sources.
How do I choose the correct RF combiner?
Start with the frequency relationship between the inputs. Then check insertion loss, isolation, PIM, power handling, port quantity and installation requirements.
Where are RF combiners used in a DAS?
They are usually installed near the DAS head-end or inside a POI before signals enter the shared feeder and antenna network.
Can an RF combiner also work as a splitter?
Some passive devices are reciprocal, but reverse operation may not provide the required isolation or power handling. Always check the product datasheet.
What specifications are most important?
Key specifications include frequency range, insertion loss, isolation, return loss, PIM, power rating, connector type and environmental protection.
Do MIMO systems require special combiner configurations?
Yes. MIMO systems require separate RF paths. Twin or multi-path combiners can support multiple bands while keeping each MIMO branch isolated.
Conclusion
Multiband combiners allow separate RF bands to share a feeder or antenna path through frequency-selective filtering. Same-band combiners are used for sources within the same spectrum range, while hybrid combiners provide a broadband method when ordinary filter-based separation is unsuitable. Correct selection requires careful review of the frequency plan, port count, isolation, insertion loss, PIM, power, MIMO configuration and installation environment.
