In radio frequency systems, multiple signals often need to share the same antenna, feeder cable or indoor distribution network. An antenna combiner brings two or more RF inputs together into a common output, while a power splitter performs the opposite task by distributing one input signal to several output paths.

In a distributed antenna system, this combining function may be performed by a standalone hybrid combiner, a multi-band combiner, a combiner matrix or an integrated point of interface. Understanding the differences between these devices helps RF engineers and system integrators control insertion loss, isolation, PIM and power handling throughout the network.

SYMAIR supplies RF combiners, passive DAS components and point-of-interface solutions for indoor coverage, multi-band and multi-operator network deployments.

Article Summary

An antenna combiner combines multiple RF signals into one common output.
A DAS combiner is used at or near the DAS head-end to integrate signals from different bands, sectors or operators.
A hybrid combiner is one possible circuit or device used within a DAS combining arrangement.
A power splitter distributes one signal to multiple antenna branches and is normally installed farther into the DAS distribution network.
A POI provides a more complete interface that may include combining, filtering, attenuation, monitoring and signal conditioning.

What Is an Antenna Combiner in RF Systems?

An RF combiner (also called an antenna combiner) takes two or more input signals and combines them into a single output port that connects to an antenna or transmission line. Its primary goals are:

Allowing multiple transmitters to share one antenna.
Providing high isolation between input ports to prevent intermodulation distortion (IMD) and protect transmitters from each other.
Minimizing insertion loss while handling the required power levels.

Common applications include:

Wireless IEM systems in live sound (multiple transmitters → one antenna).
Cellular base stations and DAS where multiple carriers or bands share infrastructure.
Broadcasting and repeater systems.

RF combiners are especially valuable in crowded RF environments where deploying separate antennas for every transmitter is impractical due to space, wind load, or cost.

c-das combiner, sharing das, 1800/2300/2600mhz

What Is a DAS Combiner?

A DAS combiner is an RF combining device or assembly used to integrate signals from multiple base stations, radios, frequency bands, sectors or mobile operators before those signals enter a distributed antenna system.

The term describes the device's role in the system rather than a single circuit design. Depending on the network architecture, a DAS combiner may contain hybrid couplers, same-band combiners, diplexers, filters, attenuators, termination loads or a multi-input combiner matrix.

For example, signals from several BTS or RRU ports may first be filtered, attenuated or isolated and then combined into one or more common RF outputs. These outputs feed the DAS head-end or passive distribution network, where splitters, directional couplers and tappers distribute RF power to indoor antennas.

What Does a DAS Combiner Do?

A DAS combiner can perform one or more of the following functions:

Combine signals from different cellular frequency bands.
Combine same-band signals from separate sectors or operators.
Connect several signal sources to shared DAS infrastructure.
Support SISO, 2×2 MIMO or higher-port-count configurations.
Provide isolation between signal-source ports.
Reduce the number of separate feeder paths required at the head-end.

In a neutral-host system, a combiner arrangement may allow several mobile operators to share a common indoor antenna network while keeping their source ports properly isolated.

Where Is a DAS Combiner Installed?

A DAS combiner is normally installed at or near the DAS head-end, between the RF signal sources and the downstream distribution network.

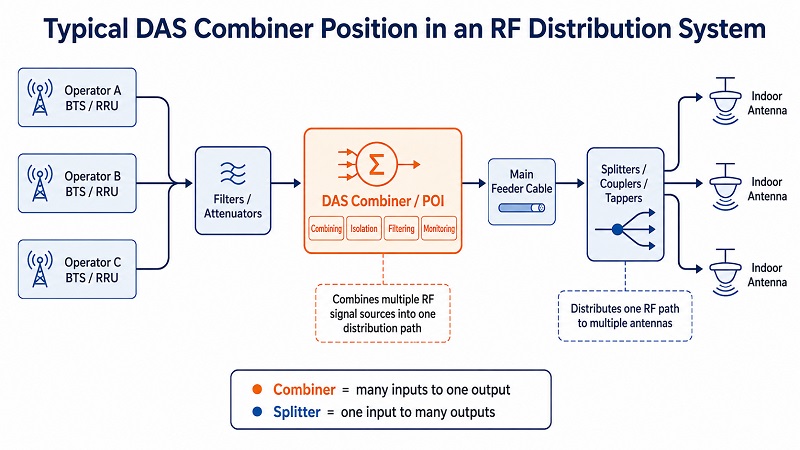

BTS / RRU / BDA / Signal Sources → Filters or Attenuators → DAS Combiner or POI → Feeder Network → Splitters, Couplers and Tappers → Indoor Antennas

The exact position varies by system. A small passive DAS may use a compact multi-band combiner, while a larger multi-operator project may require a rack-mounted point of interface with separate input channels, filtering and monitoring functions.

Is a DAS Combiner the Same as a POI?

Not always. A DAS combiner primarily describes the combining function. A point of interface, or POI, is normally a more complete subsystem placed between one or more RF sources and the DAS network.

Depending on the project, a POI may include combiners, filters, duplexers, attenuators, directional couplers, monitoring ports and termination loads. A simple DAS combiner may only combine selected inputs, while a POI may also condition and manage each operator or band before the signals enter the shared system.

low pim hybrid combiner 2:1 (2-input and 1-output), 694-960mhz, 7/16 din female

How Does a Hybrid Combiner Work?

A hybrid combiner (such as a 90° quadrature hybrid or 180° hybrid) is a four-port RF device based on coupled transmission line or microwave hybrid structures.

It can operate in two modes:

Combining mode: Two input signals are combined at the sum port, while any imbalance or reflected energy is absorbed by the isolation (terminated) port
Splitting mode: A single input signal is divided into two outputs with a controlled phase shift (typically 90° or 180°)

This structure ensures stable signal handling even when the inputs are not perfectly matched.

Key characteristics of high-quality hybrid combiners include:

Theoretical 3 dB splitting/combining loss per path (real-world insertion loss typically 3.0–3.5 dB, with excess loss <0.5–1 dB in premium units).
Isolation often ≥20–30 dB between input ports.
Excellent return loss (≥18 dB) and low PIM (Passive Intermodulation) performance, critical for LTE/5G systems (e.g., ≤ -160 dBc in SYMAIR low-PIM models).

Hybrid combiners excel when combining signals in the same or closely spaced frequency bands where filtering alone cannot separate them. The isolation port absorbs mismatched or incoherent power, protecting the system.

DAS Combiner vs Hybrid Combiner vs Power Splitter

These terms are related, but they describe different functions or levels of the RF system. A hybrid combiner may be one component inside a DAS combiner, while a splitter is generally used downstream to distribute the combined signal.

Device	Primary Function	Typical Position	Important Design Priorities	Common Application
DAS Combiner	Combines multiple bands, sectors, radios or operator signals	DAS head-end or before the distribution network	Band coverage, port count, isolation, insertion loss, PIM and power handling	Passive DAS, shared DAS and neutral-host systems
Hybrid Combiner	Combines or divides RF signals with a controlled phase relationship	Standalone or inside a larger DAS combining assembly	Isolation, termination, excess loss, phase balance and power rating	Same-band or closely spaced signal combining
Multi-Band Combiner	Combines signals occupying separated frequency bands	Head-end, base station or feeder interface	Passband loss, band isolation, rejection and power handling	Sharing one feeder or antenna across several bands
Point of Interface	Connects, conditions and combines several RF sources	Between BTS/RRU equipment and the DAS	Filtering, attenuation, monitoring, isolation, PIM and modularity	Large multi-band or multi-operator systems
Power Splitter	Divides one RF input into two or more outputs	Downstream DAS distribution network	Split ratio, insertion loss, impedance match, PIM and power rating	Feeding multiple antenna branches

The correct combining method depends on whether the input signals occupy the same, overlapping or clearly separated frequency bands. For a more detailed product-level comparison, see our guide to same-band, multi-band and hybrid combiners.

Can a Power Splitter Work as a Combiner?

Many passive RF devices are reciprocal, so a splitter may physically pass signals in the reverse direction. However, that does not mean every splitter is suitable for combining independent transmit sources.

A transmit combining application must account for port isolation, phase and amplitude relationships, reflected power and the dissipation capability of internal or external termination elements. A dedicated RF or hybrid combiner is normally safer when combining independent high-power sources.

For downstream RF distribution, see SYMAIR low-PIM power splitters.

Best Practices for Using Antenna Combiners

Match frequency bands and ensure proper phase/amplitude alignment for optimal combining efficiency.
Use adequate termination (dummy load) on the isolation port.
Consider PIM performance for modern wireless networks.
Pair with quality feeder cables and jumpers to maintain overall system integrity.

For more on cabling, see our guide: Feeder Cables: Uses in RF Systems.

FAQs About Antenna and DAS Combiners

1. What does an antenna combiner do?

An antenna combiner combines multiple RF signals into one output so they can share the same feeder and antenna distribution system.

2. Is a DAS combiner the same as a hybrid combiner?

No. A DAS combiner refers to the overall combining function, while a hybrid combiner is one type of RF component used within a DAS system.

3. Can a power splitter be used as a combiner?

Some reciprocal power splitters can operate as combiners. However, engineers must verify frequency range, isolation, power handling and termination capacity before use.

4. What does the 3 dB rating of a hybrid combiner mean?

A two-way hybrid combiner typically has about 3 dB coupling from each input to the output, plus a small amount of excess insertion loss.

5. When should a hybrid combiner be used?

A hybrid combiner is commonly used for signals in the same or overlapping frequency ranges when high isolation between input ports is required.

6. Can a DAS combiner support MIMO?

Yes. However, each MIMO branch must use a separate and isolated RF combining path.

7. Why is a termination load required?

The isolated port may receive power caused by signal imbalance or mismatch. A correctly rated termination load safely absorbs this power.

8. How do I choose a DAS combiner?

Check the frequency bands, port quantity, RF power, insertion loss, isolation, PIM, connector type and MIMO configuration.

Conclusion

An antenna combiner allows several RF signals to share common infrastructure, while a DAS combiner applies this function at the head-end of a distributed antenna system. Hybrid combiners may be used for same-band signal integration, whereas power splitters distribute the combined signal to downstream antenna branches. Matching the frequency plan, port count, isolation, insertion loss, PIM and power requirements is essential for reliable system performance.
