What Is a Base Station Antenna? Complete Engineering Guide for 4G/5G Network Planning

A base station antenna is one of the most important RF components in a mobile network. It converts electrical RF signals from base station equipment into electromagnetic waves and radiates them toward the intended coverage area. For mobile operators, system integrators, tower companies, and wireless coverage contractors, the correct antenna choice affects coverage distance, cell capacity, signal quality, interference control, and long-term network upgrade flexibility.

In 4G and 5G network planning, base station antennas are not selected only by frequency band. Engineers also need to evaluate gain, beamwidth, polarization, port configuration, electrical downtilt, PIM performance, wind load, isolation, connector type, installation environment, and compatibility with RF cables, combiners, filters, and DAS systems.

As a distributed antenna system manufacturer and RF component supplier, SYMAIR provides antenna and passive RF solutions for mobile communication networks, including outdoor sites, in-building coverage, stadium coverage, and 4G/5G passive DAS deployments. This guide explains the engineering principles behind base station antenna selection and how to avoid common planning mistakes.

What Is a Base Station Antenna and How It Works

A base station antenna is a directional or sectorized antenna installed on a tower, rooftop, pole, wall, or dedicated structure to transmit and receive mobile signals between the radio unit and user devices. In a typical cellular site, the base station antenna connects to RRUs/RRHs or radio equipment through jumper cables, feeders, connectors, and sometimes RF combiners or filters.

The antenna works by shaping RF energy into a controlled radiation pattern. Instead of radiating equally in every direction, most macro-cell base station antennas focus energy into a sector, such as 65-degree, 90-degree, or 120-degree horizontal beamwidth. This improves coverage efficiency and reduces interference with neighboring cells.

Several parameters define antenna behavior:

• Frequency range: Common mobile bands include low bands around 700/800/900 MHz, mid bands around 1710-2690 MHz, and 5G sub-6 GHz bands such as 3300-4200 MHz.

• Gain: Outdoor sector antennas often range from about 14 dBi to more than 20 dBi depending on size, frequency, and beamwidth.

• Polarization: Modern mobile networks commonly use ±45-degree dual polarization to support MIMO and improve signal reliability.

• VSWR: A well-matched antenna system usually targets low reflection, often with VSWR around 1.5:1 or better in many telecom designs.

• PIM performance: Low passive intermodulation is critical for LTE and 5G networks, especially in high-power multi-band sites.

In simple terms, the antenna determines where the signal goes, how efficiently it is radiated, and how well the site supports multiple bands and users.

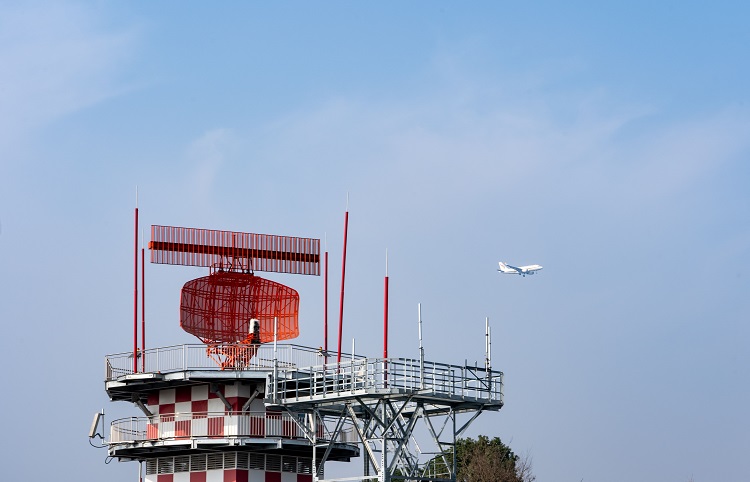

Types of Base Station Antennas

Base station antennas can be classified in several practical ways. In engineering projects, they are usually not selected by one single label, but by coverage pattern, frequency band, port configuration, polarization, downtilt method, and integration level. For example, a 4G/5G outdoor site may use a multi-band, dual-polarized, 65-degree sector panel antenna with fixed or remote electrical downtilt.

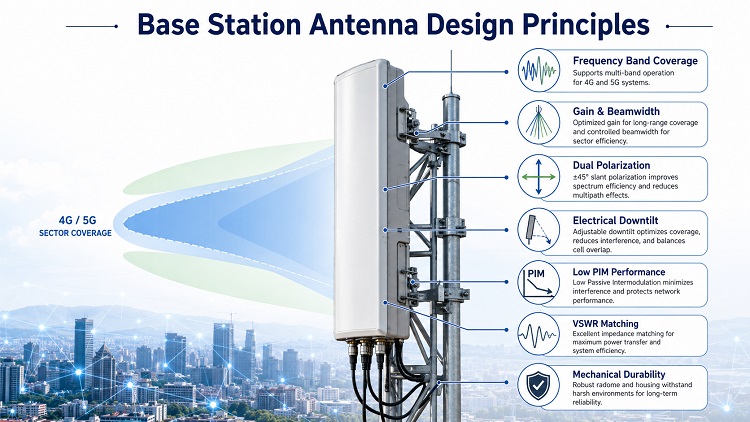

Base Station Antenna Design Principles

Base station antenna design is a balance between RF performance, mechanical reliability, site constraints, and long-term network evolution. A good antenna is not simply the highest-gain model. It must match the radio plan and the physical site.

1. Frequency and bandwidth design

Antenna bandwidth must cover the operator's licensed bands with stable gain, acceptable VSWR, and consistent radiation patterns. For 4G/5G planning, a single site may need to support multiple ranges, such as 698-960 MHz, 1710-2690 MHz, and 3300-4200 MHz. 5G NR FR1 covers 410 MHz to 7125 MHz, while FR2 begins at 24250 MHz and extends into millimeter-wave ranges. Most passive macro and DAS deployments are focused on sub-6 GHz bands because of coverage and penetration requirements.

2. Gain and beamwidth balance

Higher gain usually means a narrower beam. A 17 dBi sector antenna may provide broader practical coverage for urban or suburban sites, while a 20 dBi antenna may be better for long-distance rural or highway coverage. However, excessive gain can overshoot target users and increase interference if downtilt and azimuth are not planned correctly.

3. Polarization and MIMO support

Modern LTE and 5G systems often use 2x2, 4x4, or higher MIMO configurations. Dual-polarized ±45-degree antennas help improve link reliability and spectral efficiency without requiring two physically separated antennas. For high-capacity 5G sites, port configuration and isolation become more important.

4. Electrical and mechanical downtilt

Downtilt controls vertical coverage. Electrical downtilt changes the beam direction electronically within the antenna, while mechanical downtilt changes the physical angle of the antenna. A typical macro site may use several degrees of downtilt to focus coverage at street level and reduce inter-cell interference.

5. Low PIM construction

Passive intermodulation can degrade uplink sensitivity and reduce throughput, especially when multiple high-power carriers share the same RF path. Antenna materials, connector quality, internal contact stability, and installation torque all affect PIM performance.

6. Mechanical durability

Outdoor base station antennas must withstand wind, rain, UV exposure, temperature variation, vibration, and long service cycles. Mechanical specifications such as radome material, mounting bracket strength, wind survival rating, weight, and connector sealing should be checked before procurement.

How to Choose the Right Base Station Antenna

Selecting the right base station antenna starts with the network objective. The best choice for a rural coverage extension is different from the best choice for a dense 5G capacity layer.

Engineers should define the following points before selecting a model:

• Coverage target: macro coverage, hotspot capacity, highway, railway, campus, industrial park, stadium, or indoor extension.

• Frequency bands: required 2G/3G/4G/5G bands, current bands, and future refarming plans.

• Port configuration: 2-port, 4-port, 6-port, 8-port, or higher, depending on MIMO and multi-band requirements.

• Beamwidth: 65-degree sectors are common for three-sector macro sites, while 90-degree or narrower beams may fit special layouts.

• Gain level: choose gain according to link budget, cell radius, clutter, mounting height, and interference plan.

• Connector interface: confirm 4.3-10, 7/16 DIN, or N-type interfaces based on system design and PIM requirements.

• Installation environment: tower, rooftop, wall, pole, coastal area, high-wind zone, or indoor equipment structure.

For a mobile base station antenna used in a 4G/5G outdoor site, the selection process should also include feeder loss calculation. For example, long RF cable runs can create several dB of signal loss depending on cable type, frequency, and length. At higher frequencies, feeder loss increases, so jumper cable quality, connector installation, and cable routing become more important.

A practical rule is to select the antenna together with the full RF path, not as a standalone item. Antenna gain, feeder loss, combiner insertion loss, filter rejection, and radio output power all affect final EIRP and uplink sensitivity.

4G vs 5G Base Station Antenna Evolution

4G LTE changed base station antenna design by making multi-band, dual-polarized, and MIMO-ready antennas common. 5G continues this evolution with wider bandwidth, higher frequencies, more antenna ports, more precise beam control, and stronger demand for low-PIM RF infrastructure.

In many real deployments, 4G and 5G coexist on the same site. This means operators may need antennas and passive RF components that support both legacy and new frequency bands. Multi-band antennas, low-PIM connectors, high-quality jumper cables, and correctly selected combiners help simplify site upgrades while controlling tower loading and installation complexity.

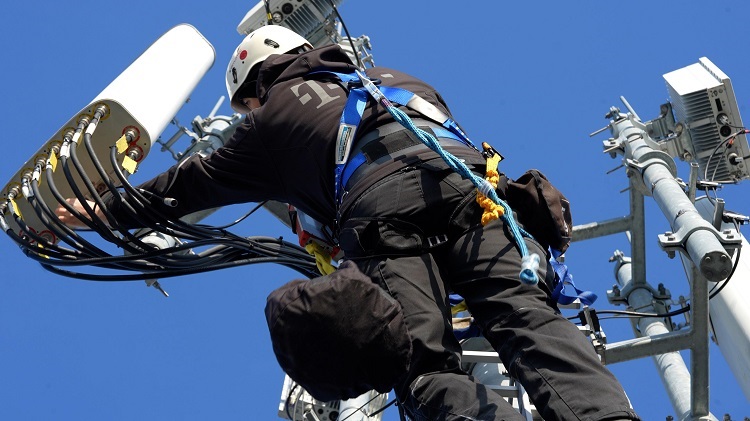

Base Station Antenna Installation Guidelines

Even a well-designed antenna can perform poorly if it is installed incorrectly. Installation quality affects coverage, PIM, return loss, waterproofing, and long-term reliability.

Check azimuth and downtilt. Antenna azimuth should follow the radio planning design. A few degrees of error may shift the coverage footprint and create overlap or coverage holes. Electrical and mechanical downtilt should be recorded after installation.

Maintain vertical and horizontal separation. When multiple antennas are installed on the same tower or rooftop, sufficient spacing helps reduce coupling and interference. The exact spacing depends on frequency, antenna pattern, power level, and site structure.

Use correct connector torque. Loose connectors may cause high return loss and PIM. Over-tightening may damage the interface. Installers should follow the connector manufacturer's torque requirements and use proper tools.

Protect RF interfaces from water ingress. Outdoor RF connectors should be sealed with suitable weatherproofing materials. Water ingress can increase loss, create intermittent faults, and cause corrosion.

Route cables carefully. Avoid sharp bends, excessive pulling force, and unsupported cable runs. Cable bending radius is especially important for feeder cables and jumper assemblies.

Perform post-installation testing. Typical acceptance tests include VSWR/return loss, distance-to-fault, PIM testing, sector verification, and coverage drive testing. For multi-band sites, each band and port should be checked according to the test plan.

Common Problems & Troubleshooting

Base station antenna problems often appear as weak coverage, high dropped-call rate, poor throughput, uplink noise, or inconsistent sector performance. Troubleshooting should follow the RF path from the radio to the antenna and from the antenna to the coverage area.

For troubleshooting, avoid replacing the antenna before testing the complete passive chain. In many cases, the root cause may be a jumper cable, connector, combiner, filter, or installation issue rather than the antenna itself.

System Integration: Antenna + RF + Combiner + DAS

A base station antenna is part of a larger RF ecosystem. In a modern mobile network, the antenna must work with RF cables, jumper assemblies, connectors, power splitters, couplers, combiners, filters, POI units, and DAS components.

For outdoor macro sites, the RF path may include radio equipment, jumper cable assemblies, lightning protection, feeder connectors, combiners or filters, and sector antennas. For indoor coverage, signals from base stations or repeaters may pass through POI units, splitters, couplers, tappers, feeder cables, and indoor antennas to distribute signal throughout buildings.

Combiners and filters are especially important when several bands, operators, or systems share infrastructure. They help combine or separate RF signals while controlling interference and protecting the network from unwanted frequencies. SYMAIR provides RF combiners and filters for applications such as base stations, wireless repeaters, DAS networks, and RF system integration.

For B2B buyers, system-level compatibility should be evaluated before ordering antennas in bulk. The procurement checklist should include frequency plan, RF power, connector type, PIM requirement, mounting method, cable route, combiner loss, filter rejection, DAS power distribution, and environmental conditions.

This integrated approach helps reduce rework, shorten installation time, and improve long-term network performance.

FAQ

1. What is the main function of a base station antenna?

The main function of a base station antenna is to transmit and receive RF signals between mobile users and base station equipment. It shapes the coverage area, supports sector planning, and affects signal strength, interference, and capacity.

2. What is the difference between a base station antenna and a mobile base station antenna?

In many engineering discussions, the terms are used similarly. A mobile base station antenna usually refers to an antenna used in cellular mobile networks, including 4G LTE and 5G sites. The focus is on mobile communication coverage rather than fixed point-to-point links.

3. What gain is suitable for a base station antenna?

There is no universal gain value. Many outdoor sector antennas fall roughly between 14 dBi and 20+ dBi. Lower gain may suit dense urban coverage, while higher gain may fit rural, highway, or long-distance directional coverage. The final choice should be based on link budget, beamwidth, mounting height, and interference planning.

4. Why is low PIM important for 4G and 5G antennas?

Low PIM is important because passive intermodulation can create unwanted signals that interfere with the uplink. In LTE and 5G networks, high PIM may reduce SINR, lower throughput, and cause unstable user experience, especially at multi-band high-power sites.

5. Can one antenna support both 4G and 5G?

Yes, some multi-band antennas can support both 4G and 5G frequency bands, especially in sub-6 GHz deployments. However, engineers must confirm the exact frequency range, port configuration, MIMO requirements, PIM rating, connector type, and mechanical constraints before selection.

6. How should buyers evaluate a base station antenna supplier?

Buyers should evaluate frequency coverage, product consistency, RF test capability, low-PIM design, mechanical reliability, documentation support, delivery capability, and whether the supplier can also support related RF components such as cables, connectors, combiners, filters, and DAS products.

Conclusion

A base station antenna is not just a passive metal structure. It is a critical engineering component that determines how efficiently a 4G/5G network converts RF power into usable coverage and capacity. The right antenna should match the frequency plan, MIMO architecture, coverage target, beamwidth, gain, downtilt, connector system, and passive RF infrastructure.

For network operators, integrators, and telecom contractors, the best procurement decision is made at system level: antenna + RF cable + connector + combiner + filter + DAS design. SYMAIR supports mobile communication projects with base station antennas, DAS antennas, RF components, and system integration support. If you are planning a 4G/5G outdoor site, indoor coverage project, or DAS upgrade, send your frequency bands, coverage scenario, port requirements, and installation conditions to SYMAIR for a practical antenna and RF component recommendation.
